• Esaote: Special COVID-19

The growing outbreak of COVID-19 has generated unprecedented stress on healthcare systems at global level and the demand of Point-of-Care US in Emergency, ICU and CCU departments dramatically increased due to unexpected number of critical patients to be monitored. Interstitial lung disease is a life-threatening complications of COVID infection.

The first reports from different parts of world indicate that lung US can document signs suggestive for interstitial-alveolar damage. Another severe COVID complication is perimyocarditis, that can be also easily diagnose by US during the same exam.

Advantage of lung and cardiac US in a current epidemiologic situation is that it can be performed directly at bed-side by the same evaluating clinician, thus reducing the number of health workers potentially exposed to the patient.

Benefits

  • Sensitivity and specificity in lung-imaging
  • Agile, immediate and mobile
  • No ionizing radiation

Warnings

  • Qualified operators required
  • Results interpretation
  • Cleaning and disinfection

Lung Ultrasound Normal and Abnormal Patterns

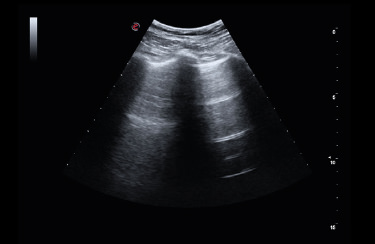

A-lines

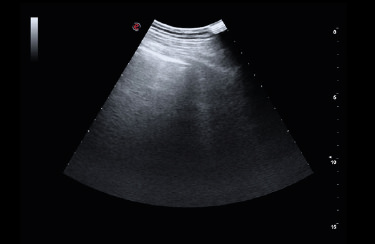

Regular pleural line, B-lines

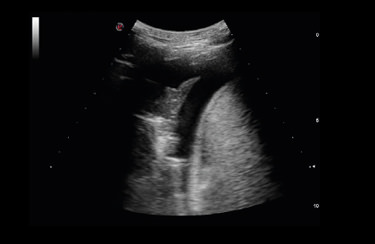

Large pleural effusion, lung consolidation

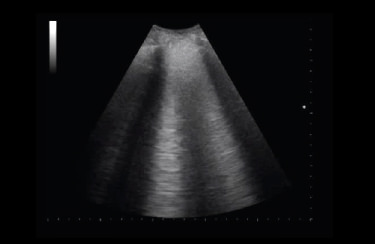

Irregular pleural line, B-lines

Normal findings

“SPAA”
  • Lung Sliding
  • Lung Pulse
  • A-Lines
  • Short Vertical Artifacts

Abnormal findings

Pneumothorax “3A-2P”
  • Absence of Lung Sliding
  • Absence of Lung Pulse
  • Absence of Comete Tail/Vertical Artifacts
  • Presence of Lung Point
  • Presence of A-Lines
Increased Lung Density“ABC”
  • Absence of A-Lines
  • B-Lines
  • Consolidation
Pleural Effusion “CSF”
  • Negative Curtain Sign
  • Positive Spine Sign
  • Presence of Fluid

Complete

  • High performance in all the applications
  • Large probes portfolio, convex, linear and phased-array
  • Advanced configurations, including TE probe or Strain package

Fast

  • 2 probes connectors Up to 4 with multiconnector
  • Touchscreen with intuitive menus
  • Long-duration battery and quick boot-up time (15”)

Compact

  • Full screen mode
  • Swivelling monitor
  • Agile trolley easy with 4 swivelling wheels

Connected

  • Follow-up & Multi-modality options to retrieve other imaging modalities
  • eStreaming for real-time imaging streaming
  • eTablet & MyLabRemote for remote storage and control

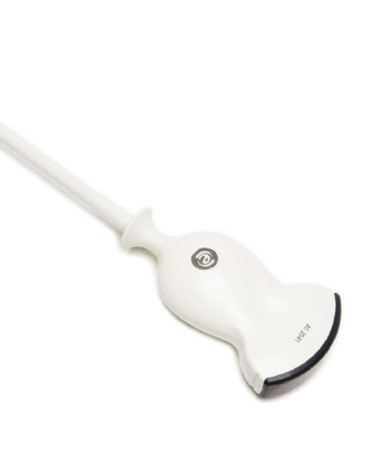

Probe 1



Low-frequency probe to scan lung parenchyma and commonly used in emergency for abdominal organs.

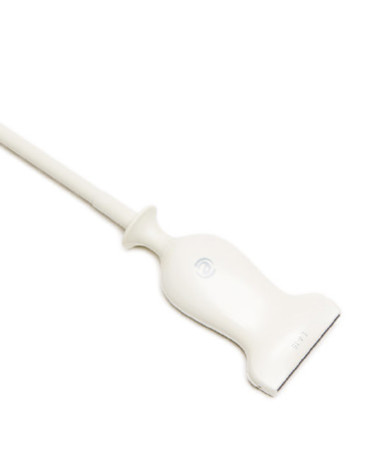

Probe 2



High-frequency probe to scan pleural area and superficial structures. Commonly used to scan vessels and support lines’ placement.

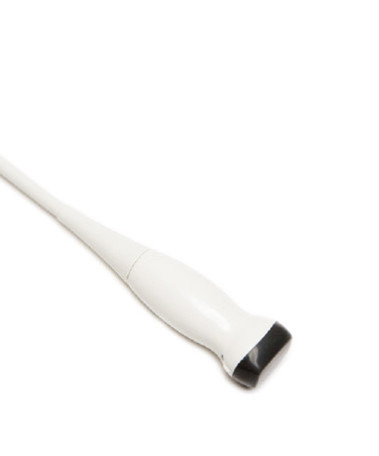

Probe 3



Low-frequency phased-array probe to scan the lung and commonly used for heart functionality monitoring.

Scientific references



  • Proposal for international standardization of the use of lung ultra-sound for COVID-19 patients; a simple, quantitative, reproducible method.
    Soldati G, Smargiassi A, Inchingolo R, Buonsenso D, Perrone T, Briganti DF, Perlini S., Torri E., Mariani A., Mossolani E.E., Tursi F., Mento F., Demi L. - J Ultrasound Med. 2020 Mar 30. doi: 10.1002/jum.15285

  • Is there a role for lung ultrasound during the COVID-19 pandemic?
    Soldati G., Smargiassi A., Inchingolo R., Buonsenso D., Perrone T., Briganti D.F., Perlini S., Torri E., Mariani A., Mossolani E.E., Tursi F., Mento F., Demi L. - J Ultrasound Med. 2020 Mar 20. doi: 10.1002/jum.15284.

  • Point-of-Care Lung Ultrasound findings in novel coronavirus disease-19 pneumoniae: a case report and potential applications dur-ing COVID-19 outbreak

    Buonsenso D., Piano A., Raffaelli F., Bonadia N., De Gaetano Donati K., Franceschi F. - Eur. Rev. Med. Pharmacol. Sci. 2020 Mar; 24(5):2776-2780. doi: 10.26355/eurrev_202003_20549.

  • Accuracy of Lung Ultrasound in Patients with Acute Dyspnea: The In-fluence of Age, Multimorbidity and Cognitive and Motor Impairment
    Vizioli L., Forti P., Bartoli E., Giovagnoli M., Recinella G., Bernucci D., Masetti M., Martino E., Pirazzoli G.L., Zoli M., Bianchi G. - Ultrasound in Medicine & Biology, Volume 43, Issue 9, September 2017, Pages 1846-1852, ISSN 0301-5629

  • Role of lung ultrasound in paediatric intensive care units: comparison with bedside chest radiography
    Mughetti M., Napoli G., Chiesa A.M., Ciccarese F., Bertaccini P., Zompatori M. - European Congress of Radiology 2017 - Poster No.: B- 0161-DOI:0.1594/ecr2017/B-0161 - dx.doi.org/10.1594/ecr2017/B-0161

  • Influence of positive end-expiratory pressure on myocardial strain assessed by speckle tracking echocardiography in mechanically ven-tilated patients.
    Franchi F., Faltoni A., Cameli M., Muzzi L., Lisi M., Cubattoli L., Cecchini S., Mondillo S., Biagioli B., Taccone F.S., Scolletta S. - Biomed. Res. Int. 2013;2013:918548. doi: 10.1155/2013/918548. Epub 2013 Aug 28.

  • Early recognition of the 2009 pandemic influenza A (H1N1) pneu-monia by chest ultrasound
    Testa A., Soldati G., Copetti R., Giannuzzi R., Portale G., Gentiloni-Silveri N. - Critical Care 2012, 16 (1), R30, 1012 Febr. 17 http://ccforum.com/content/16/1/R30

  •
